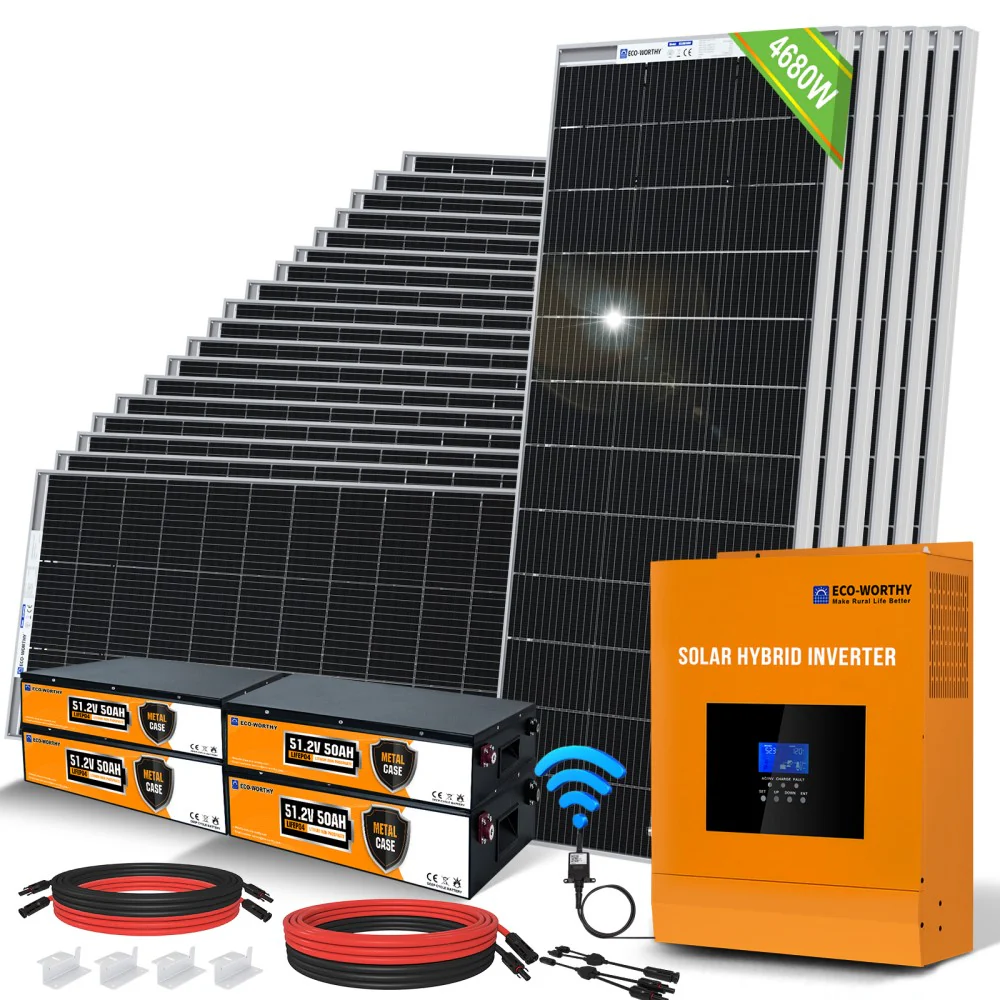

4800W 48V (24x Bifacial 195W) Complete MPPT Off Grid Solar Kit
$7,199.99$8,199.99 (-12%)
If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 4800W 48V expandable MPPT Solar Kit is an ideal choice.
ECO-WORTHY 195 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
All in one inverter Integrated with 80A/48V MPPT solar charge controller, 5000W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.
ECO-WORTHY 4800W 48V MPPT Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us [email protected].

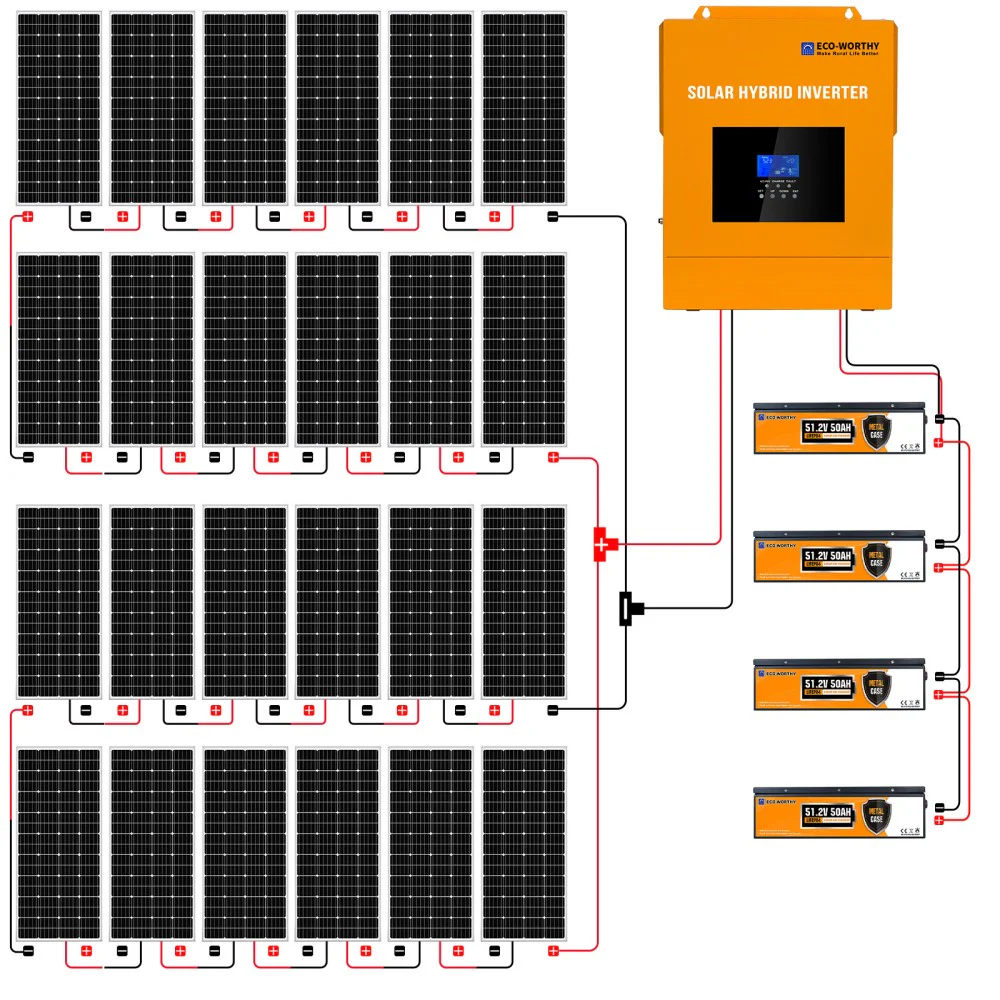

Package Includes
24x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter(5000W 48V Inverter+80A MPPT Controller)
1x 5M 8AWG Extension Cable with MC4
2x 5M 12AWG Solar Cable with MC4
1x Y MC4 Connector
24x Z Mounting Bracket
4x 50Ah 48V Stackable LiFePO4 Lithium Battery
6x 6AWG Battery Interconnect Cable
Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |

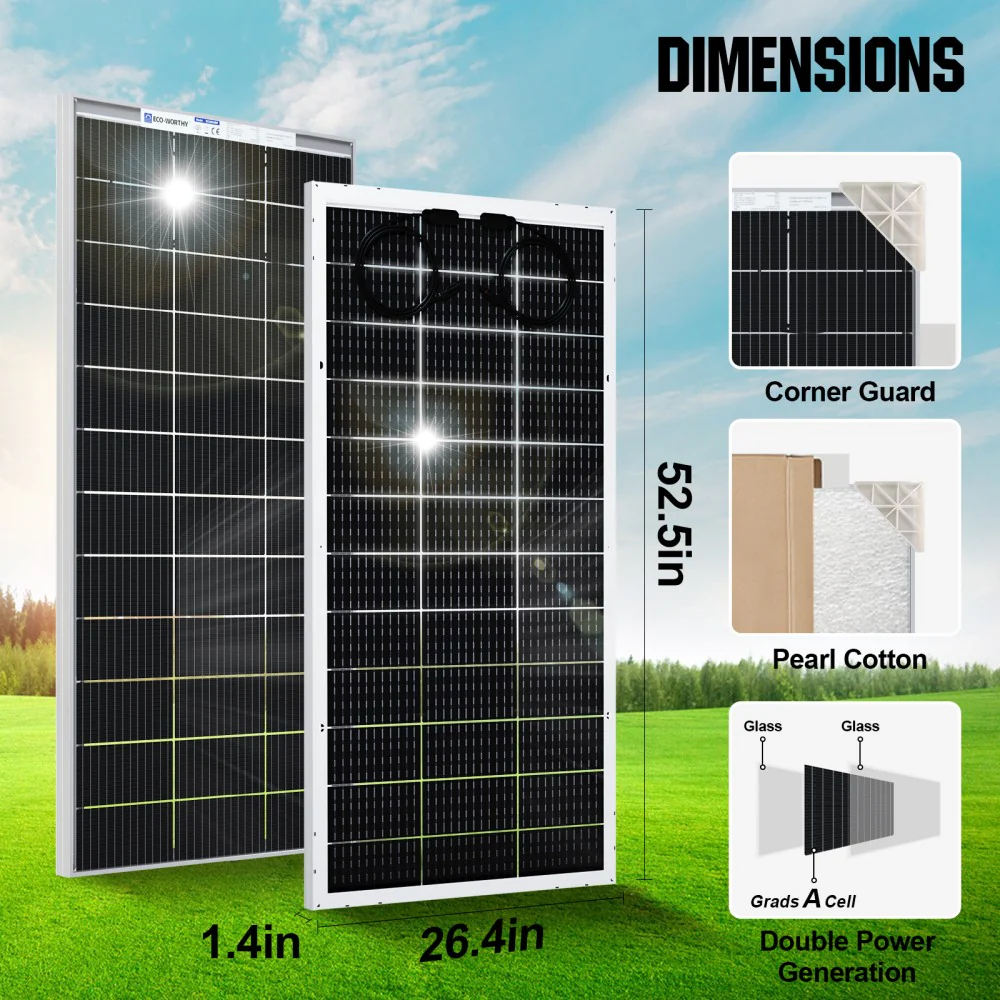

| Size: 52.6×26.38×1.38in (1335*670*35mm) |

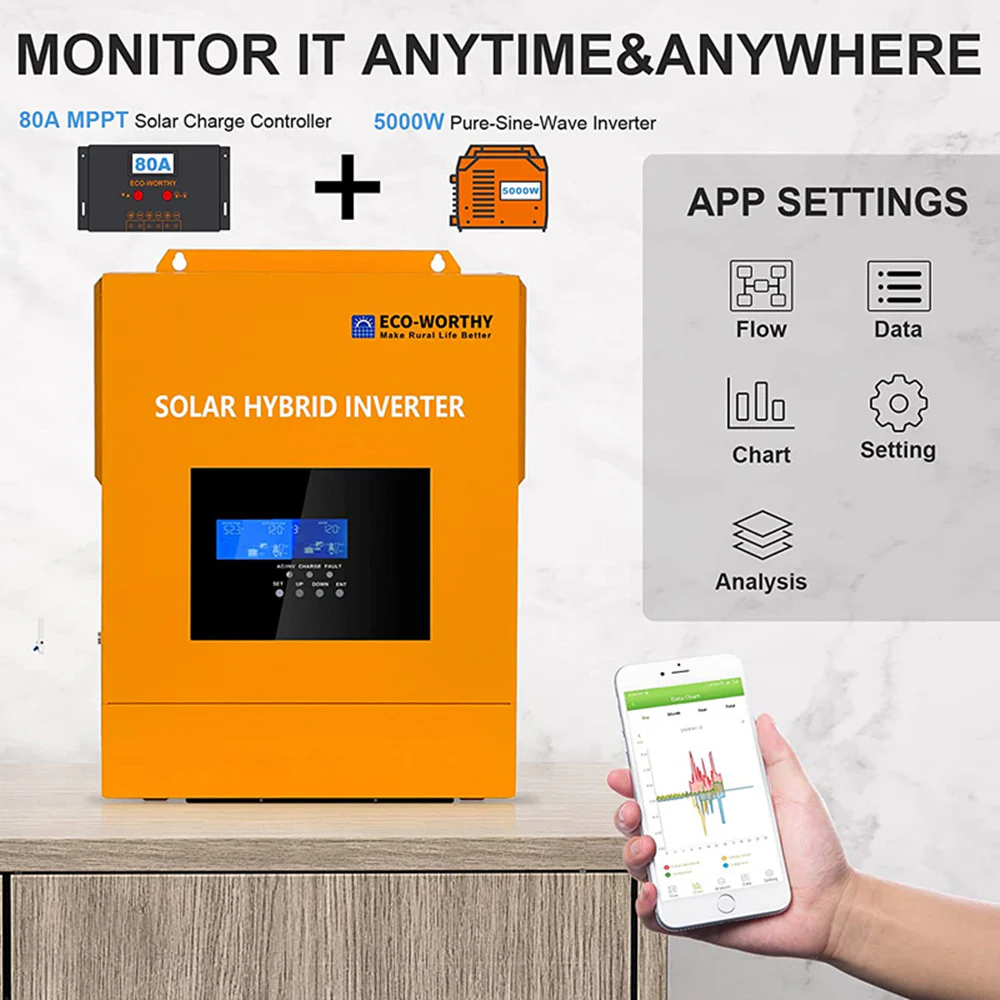

5000W 48V All-in-one Inverter with 80A MPPT
| Solar Charging Mode | |
| PV Charging Current Range: 0-80A | MPPT Voltage Range: 120-450VDC |
| Max Input Power: 4400W | Battery Voltage Range: 40-60VDC |
| Invert Mode | |
| Output Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output: 120VAC 50Hz/60Hz | Rated Battery Input Voltage: 48V |
| Peak Power: 10000W | |
| AC/Grid Charging Mode | |
| Rated Input: 110VAC 50Hz/60Hz(auto detect) |
50Ah Stackable LiFePO4 Lithium Battery
| Battery Capacity: 50Ah | Battery Power: 2560Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 50A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Battery Size: 17.21*13.11*4.92inch | Battery Weight: 58.42 lbs |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
