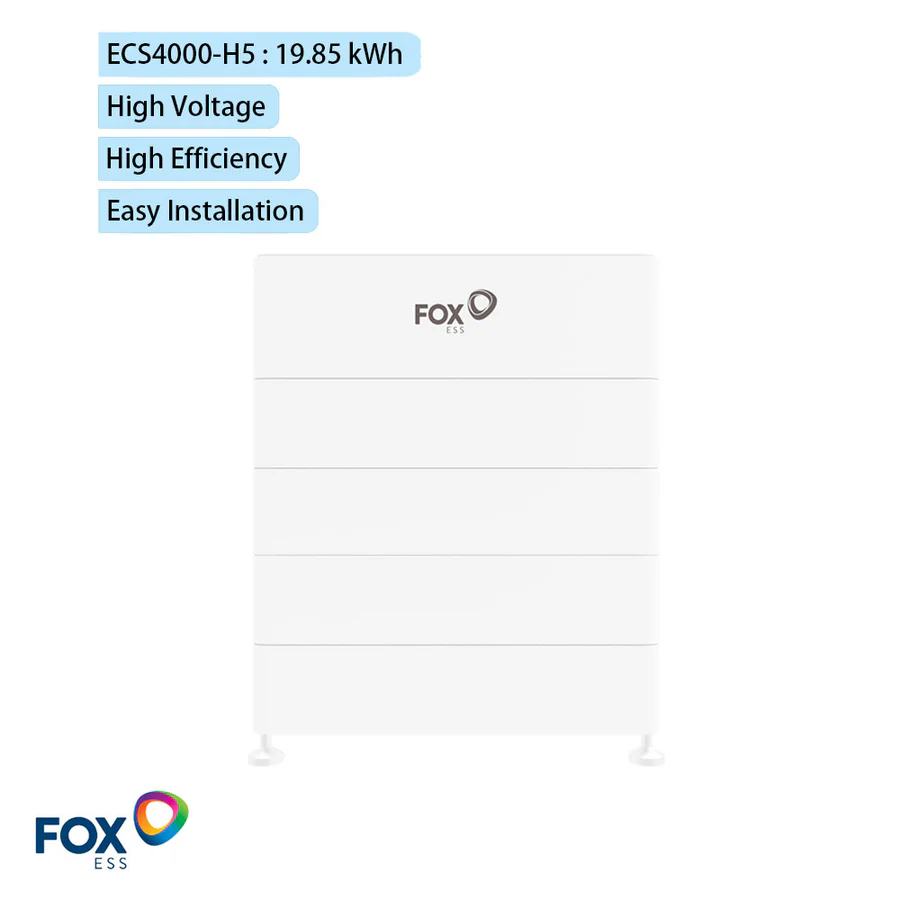

FOX ECS4000-H5 20KWh
Roll over image to zoom in
$6,554.00$8,192.50 (-20%)
The ECS is a high=performance, scalable battery storage system. The modular design allow for maximum flexibility, making it suitable for a broad range of storage applications.
Additional batteries can be installed in series, and installation is easy with a plug and play solution that can save valuable time for installers.
Key Features
- Stackable design, plug and play setup
- High efficiency: 6000+ cycles @ 90% DOD
- Expandable system, flexible customize to 7.95kWh
- BMS and cable set build-in, no wring cable needed
- IP65, indoor or outdoor installation
- 12.5 years warranty
Datasheet
| Number of Modules | 1*CM4000(with BMS), 1*CS4000 |
| Nominal Capacity | 7.95kWh |
| Nominal Voltage | 115.2V |
| Operating Voltage | 97.2-131.4V |
| Cycle Life | >= 6000 |
| Dimension(W/H/D) | 22.4 x 13.8 x 15.0inch |
| Weight | 161.7lbs |
| IP Protection | IP65 |
| Installation | Outdoor / Indoor( Stand ) |
| Operation Temperature[C/F] | -20~55°C* 3/ 14~131 |
| Warranty | 12.5 Years |
Certificates
Datasheet
| Number of Modules | 5: 1*CM4000(with BMS), 4*CS4000 |
| Nominal Capacity | 19.87kWh |
| Nominal Voltage | 288V |
| Operating Voltage | 194.4~262.8V |
| Cycle Life | >= 6000 |
| Dimension(W/H/D) | 22.4 / 28.0 / 15.0inch(570*710*380mm) |
| Weight | 392lbs(178.2kg) |
| IP Protection | IP65 |
| Installation | Outdoor / Indoor( Stand ) |
| Operation Temperature[C/F] | -20~55°C* 3/ 14~131 |
| Warranty | 12.5 Years |
Certificates
| Safety | UL1973, UL9540, UL9540A |
| Ingress Protection | IP65 |
| Transportation | UN38.3 |
